Volve series diesel generator set

1、Engine Introduction

The Volvo company is a large industrial enterprise in Sweden, with a history of over 120 years. It is one of the oldest engine manufacturers in the world. Up to now, its engine production has exceeded 1 million units, and it is widely used in the power parts of automobiles, construction machinery, ships, etc. It is also an ideal power source for generator sets.
2、Standard supply configuration
 Diesel engine (with all accessories, three filters, electrical system) - brushless AC generator, steel structure base, fan water tank cooling system, flange coupling, 24V starting motor and charging motor, air filter, diesel filter, oil filter, onboard control panel, MCCB air protection switch, 24V starting battery and battery cables, unit shock absorber, industrial high-efficiency muffler, original factory warranty card, unit operation manual, engine operation manual, generator operation manual, unit test report, product certificate

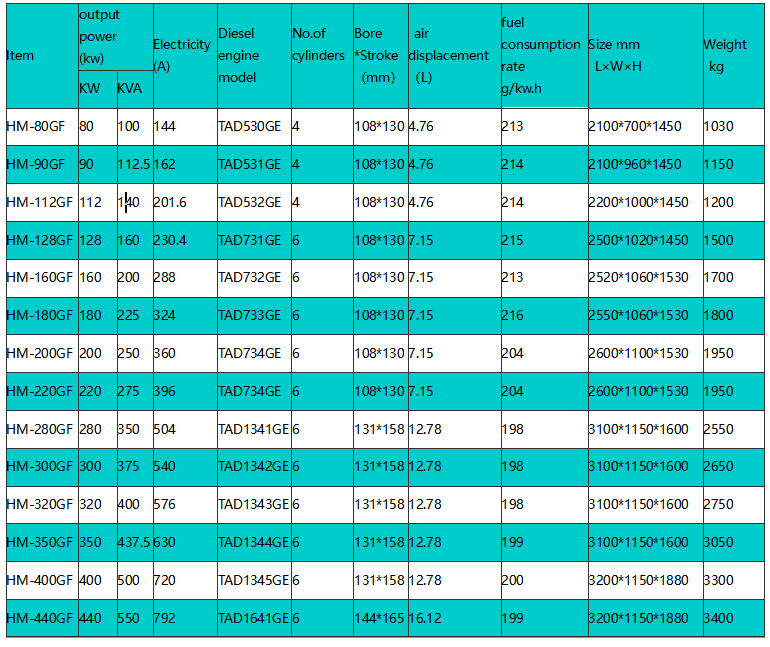

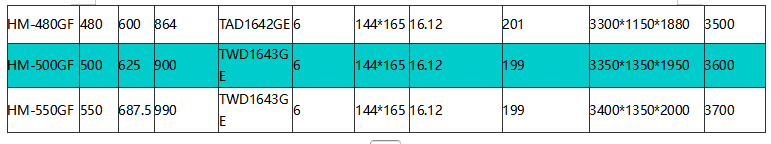

VOLVO Series Generator Set Specifications and Parameters Table :

1.The above technical parameters indicate a rotational speed of 1500 RPM, a frequency of 50 Hz, a rated voltage of 400/230V, a power factor of 0.8, and a connection method of 3-phase 4-wire. The 60Hz generator can be customized according to the specific needs of customers.

2. This parameter table is for reference only. Any changes will not be notified separately.
