Industrial-grade frying efficiency – lower investment, higher ROI.

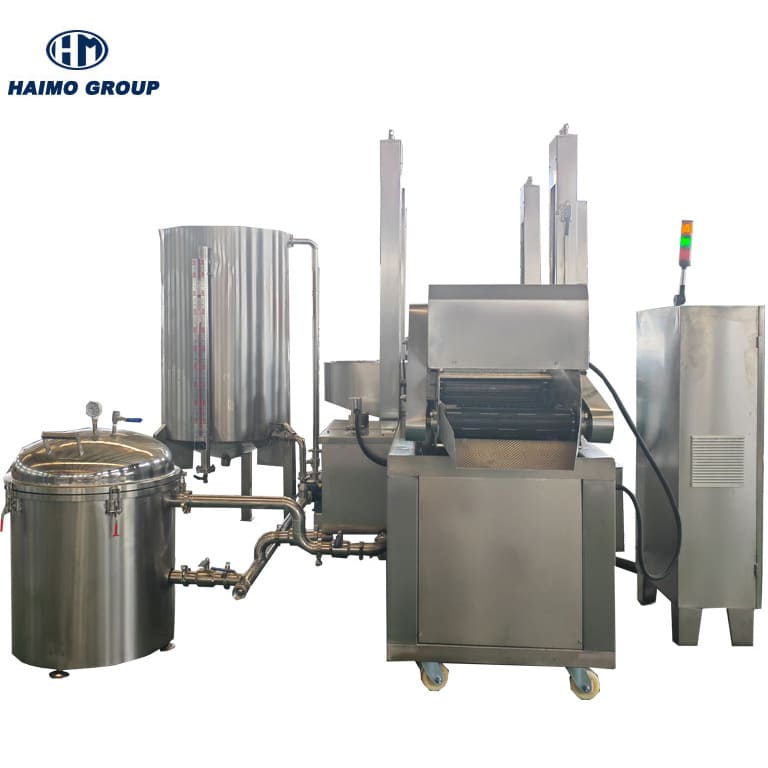

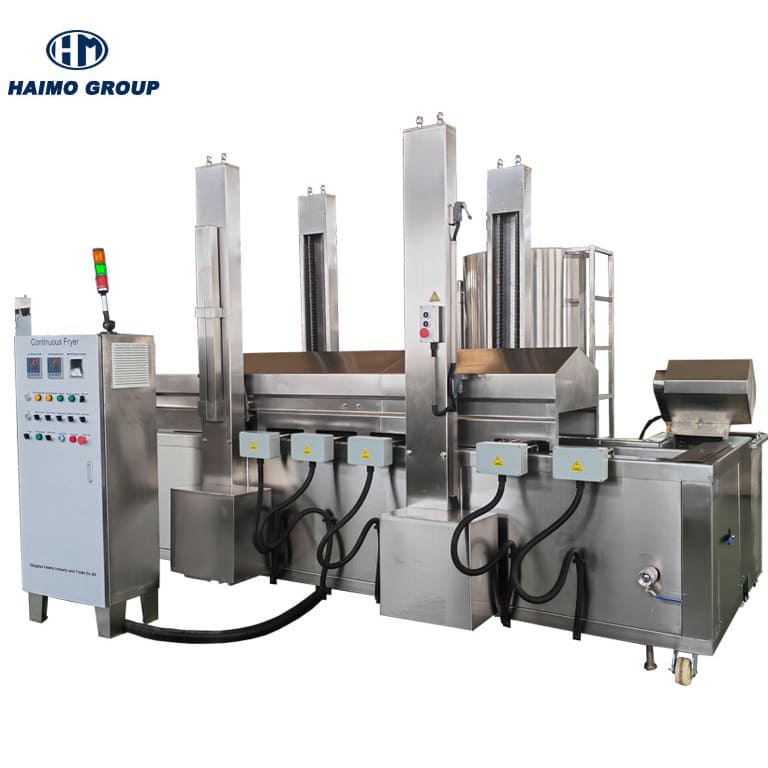

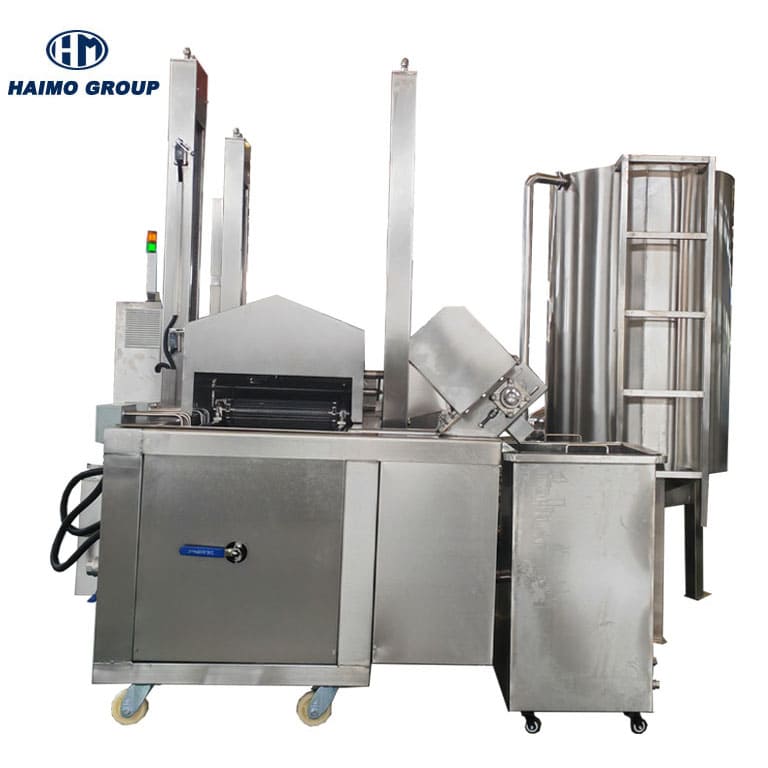

Designed for high-volume food production, the CF Series continuous fryer delivers consistent quality, advanced automation, and significant oil savings. Made entirely from 304 stainless steel, it meets international hygiene standards while dramatically reducing labor and operating costs.
Why Choose the CF Continuous Fryer?
Massive Oil Savings – Uses up to 50% less oil than ordinary frying pots.
High Output, Low Labor – Continuous production with automatic feeding/discharging – only 1 operator needed.
Superior Food Quality – ±1°C precise temperature control + timing system prevents excessive oil acidification. Keeps color, taste, and texture perfect batch after batch.
Cleaner, Safer Operation – Waterproof design, good sealing, easy to clean. Multiple safety devices and alarms.
Industrial-Grade Reliability – Imported electrical components, smooth & quiet operation, stepless speed regulation (frying time adjustable from 20 seconds to 15 minutes).
Advanced Features That Set Us Apart
Feature Benefit | |
Automatic slag removal + circulating filter system | Clean oil throughout production – better taste, higher added value. |
Automatic oil replenishment | Prevents burning, maintains oil level and quality. |
Double-layer mesh belt (upper & lower) | Prevents floating – ensures even frying for lightweight products. |
Large heating tube exchange area | Rapid temperature rise, minimal energy waste. |
High-temperature power-off protection | Safe and reliable continuous operation. |
Convertible heating sources | Electric or gas – choose what fits your plant. |
Technical Specifications (CF Series)
Model | Capacity (kg/hr) | Mesh Belt Width (mm) | Heating Source | Temp Range (°C) | Dimensions (mm) |
CF-2500 | 200–300 | 300 | Electric/Gas | 0–230 | 2700×800×1400 |
CF-3500 | 400–600 | 400 | Electric/Gas | 0–230 | 4500×1600×2000 |
CF-4500 | 600–800 | 600 | Electric/Gas | 0–230 | 6000×1600×2400 |
CF-6500 | 800–1000 | 600 | Electric/Gas | 0–230 | 6500×2000×2000 |
CF-8500 | 1000–1500 | 800 | Electric/Gas | 0–230 | 8500×2200×2000 |
Mesh belt can be customized for different products. Upper/lower double-layer design available.
Frying Time Flexibility
Adjustable from 20 seconds to 15 minutes via frequency conversion speed regulation – suitable for delicate snacks to dense food items.
What You Can Fry
French fries
Donuts
Potato chips
Chicken nuggets
Breaded vegetables
Snack foods
And more…
Built to Last
304 stainless steel chain plate – high-temperature resistant, long service life.
Automatic oil circulation system – maintains consistent oil temperature front-to-back, top-to-bottom.

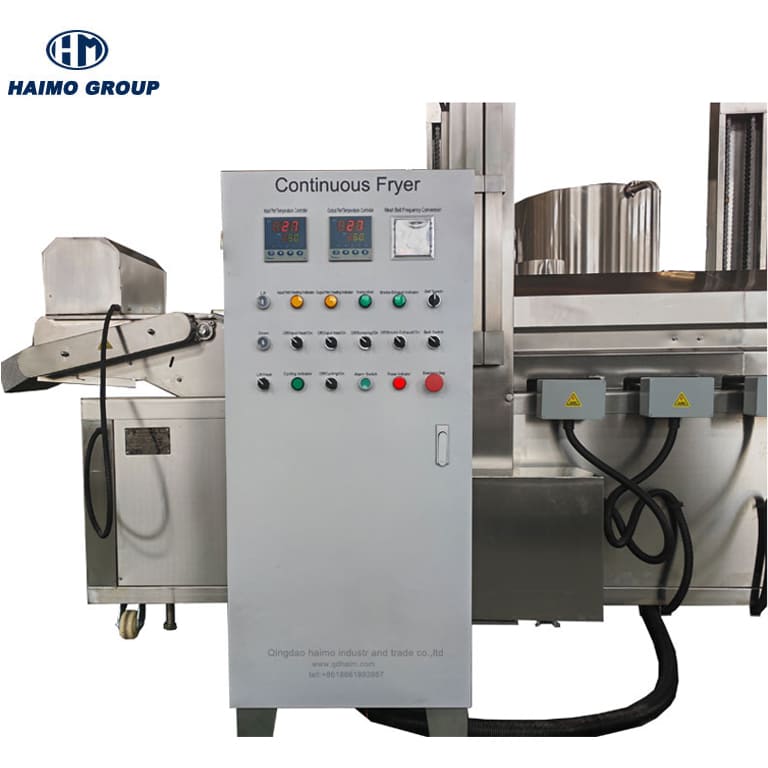

Independent electric control cabinet – safe, easy to operate, detachable for transport.
Oil filling volume: 150–200 kgs

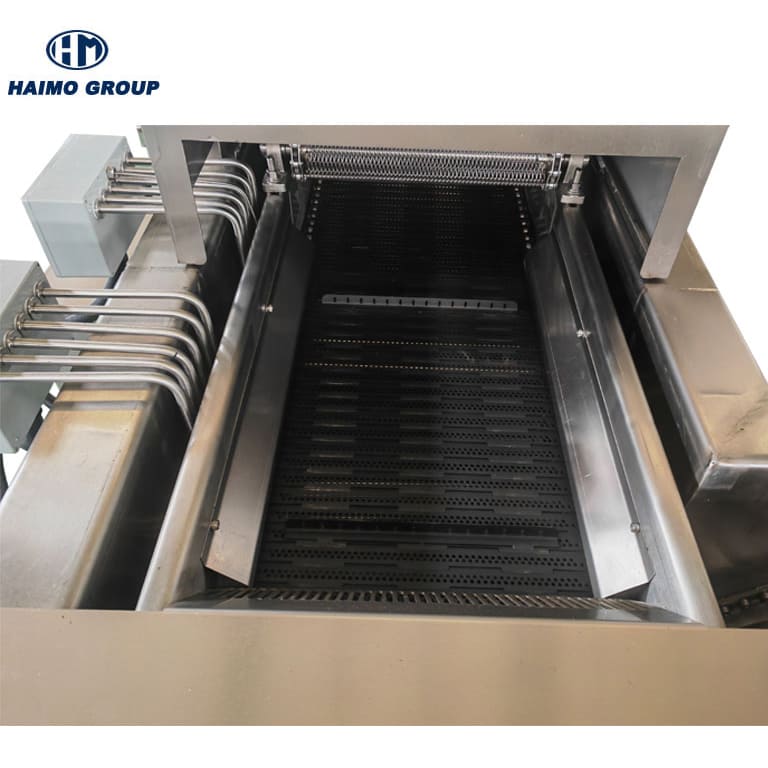

Three-layer mesh belt design:
Bottom: Scraper mesh belt
Middle: Conveyor mesh belt
Upper: Pressure mesh belt
Request a Quote
Get the right model for your production line – fast ROI calculation available.
