Product Overview

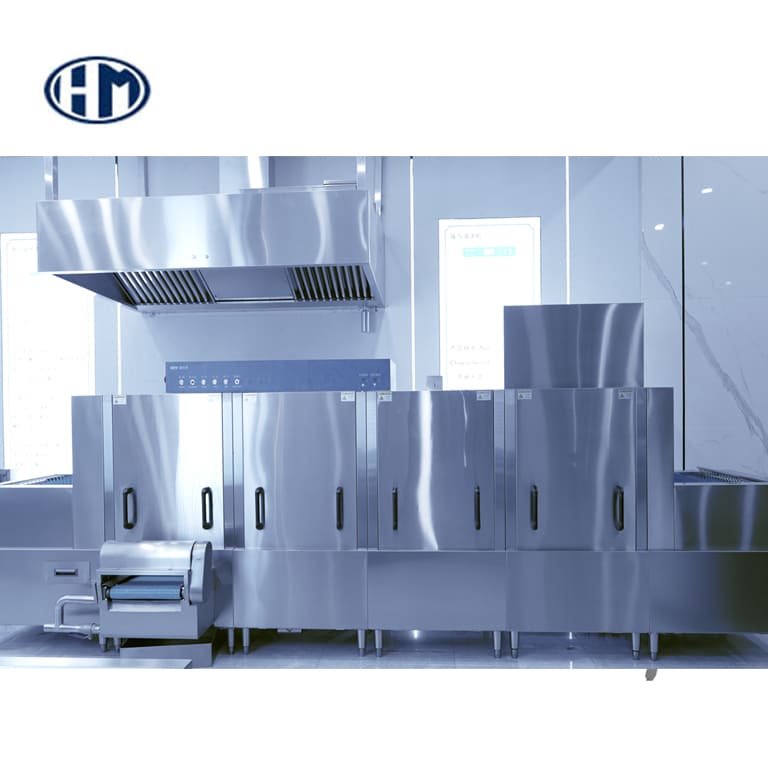

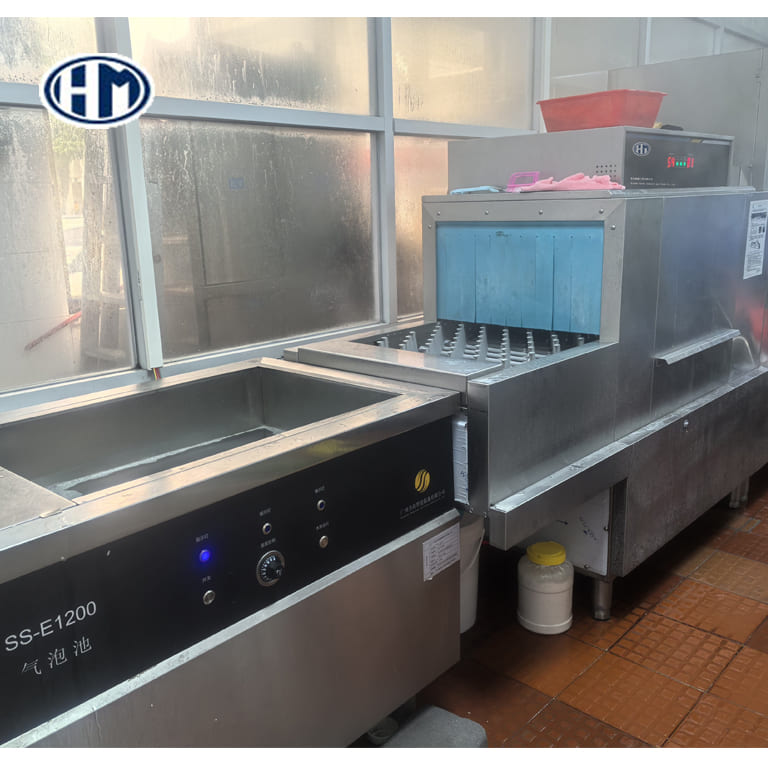

The CL Series Flight-Type Dishwasher from QINGDAO HAIMO is a high-performance, energy-efficient solution designed for large-scale dishwashing operations. Engineered with an advanced built-in rinse heater, reliable rinse pump, and robust protection devices, this dishwasher delivers consistent cleaning results for baskets, trays, barrels, and other reusable food containers.
With modular construction, ultra-low water consumption, and a powerful 360° flushing system, the CL series is the ideal choice for central kitchens, catering companies, food processing plants, universities, and other high-volume facilities.
Key Features
1. Modular & Segmented Design
The modular construction allows for customization, making transportation and installation more flexible and convenient. The machine can be adapted to fit various kitchen layouts and space constraints.
2. Ultra-Low Water Consumption
Consumes only 300-350 liters per hour – significantly saving electricity, drying agents, and detergents. The integrated washing and drying system features a high degree of automation, reducing operating costs.
3. Powerful 360° Flushing System
A high-power water pump creates a powerful flushing system. Circulating hot water flows through uniquely designed grooves, creating a powerful flush that washes dishes from all angles, ensuring a 360-degree clean without blind spots – delivering consistent cleaning results and performance.

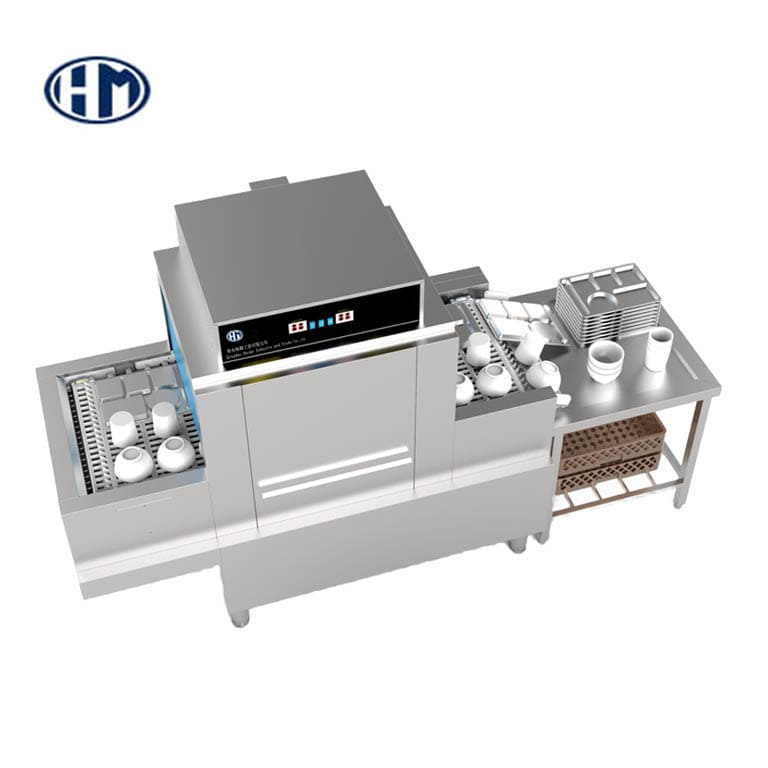

4. Inclined Conveyor System
General dishes can be washed directly on the conveyor belt without needing to be sorted and placed in baskets. The system features:
Continuously variable speed (approximately 2.7 meters per minute)
Continuous operation capability
Energy-saving efficiency
5. End-of-Line Limiter Protection
When the cutlery net reaches the end stop, the conveyor belt stops while the cutlery track continues to operate – effectively preventing damage to dishes and extending equipment life.
6. User-Friendly Operating System
Key-operated control for security
Digital display of real-time temperature
Simple operation with clearly visible machine status
Automatic functions: water inlet, refill, overflow, and automatic upgrade
Additional Design Highlights
Double-layer door structure – provides heat and sound insulation
Adjustable height – for operator comfort and energy savings
Multiple safety features – ensuring reliable and safe operation
Technical Parameters
Parameter | CL-2600 | CL-3400 | CL-3700H | CL-3700 | CL-4200H | CL-4200CH | CL-5000H | CL-5800H |
External Dimensions (mm) | 2600×900×1650 | 3400×900×1650 | 3700×900×1970 | 3700×900×1650 | 4200×900×1970 | 4210×1200×1970 | 5000×900×1970 | 5820×900×1970 |
Machine Inlet Width (mm) | 620 | 620 | 620 | 620 | 620 | 620 | 620 | 620 |
Max Washing Height (mm) | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
Washing Capacity (racks/hour) | 3000-4000 | 3000-4000 | 3000-4800 | 3000-4800 | 3000-4800 | 3000-4800 | 3000-5000 | 4000-6000 |
Water Consumption (L/h) | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 |
Water Tank Capacity (L) | 105 | 105 | 105 | 105 | 105 | 105 | 105+105 | 105+105 |
Heating Pack Capacity (L) | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
Washing Temperature (°C) | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 |
Rinse Temperature (°C) | 80-90 | 80-90 | 80-90 | 80-90 | 80-90 | 80-90 | 80-90 | 80-90 |
Water Supply Pressure (MPa) | 0.25-0.4 | 0.25-0.4 | 0.25-0.4 | 0.25-0.4 | 0.25-0.4 | 0.25-0.4 | 0.25-0.4 | 0.25-0.4 |
Water Inlet Pipe Diameter (in) | ½/20 | ½/20 | ½/20 | ½/20 | ½/20 | ½/20 | ½/20 | ½/20 |
Washing Pump Power (kW) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2+2.2 | 2.2+2.2 |
Power Supply | 380V/50Hz/3NPE | 380V/50Hz/3NPE | 380V/50Hz/3NPE | 380V/50Hz/3NPE | 380V/50Hz/3NPE | 380V/50Hz/3NPE | 380V/50Hz/3NPE | 380V/50Hz/3NPE |
Main Applications
The CL Series flight-type dishwasher provides rapid cleaning, disinfection, and sterilization solutions for:
Baskets, trays, and barrels
Large central kitchens
Catering companies
Aquaculture and food processing plants
Universities and educational institutions
Other high-volume food service facilities
Why Choose QINGDAO HAIMO CL Series?
Feature | Benefit |
Modular design | Customizable, easy transport and installation |
Ultra-low water consumption (300-350 L/h) | Saves electricity, detergent, and drying agents |
360° powerful flushing | No blind spots, consistent cleaning results |
Inclined conveyor system | No basket sorting needed, continuous operation |
End-of-line limiter | Prevents dish damage |
Digital temperature display | Real-time monitoring, easy operation |
Double-layer door | Heat and sound insulation |
Adjustable height | Operator comfort, energy saving |
