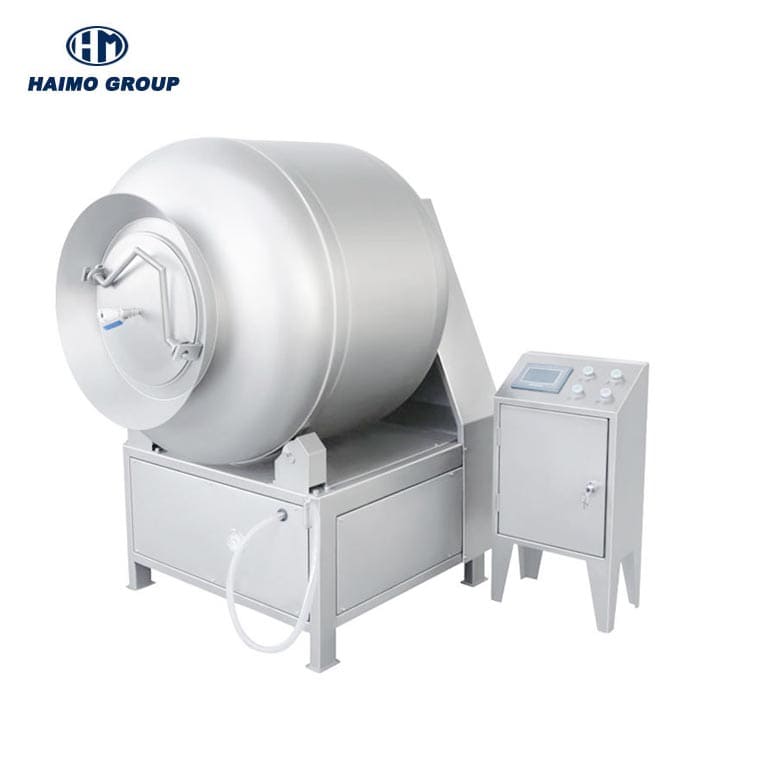

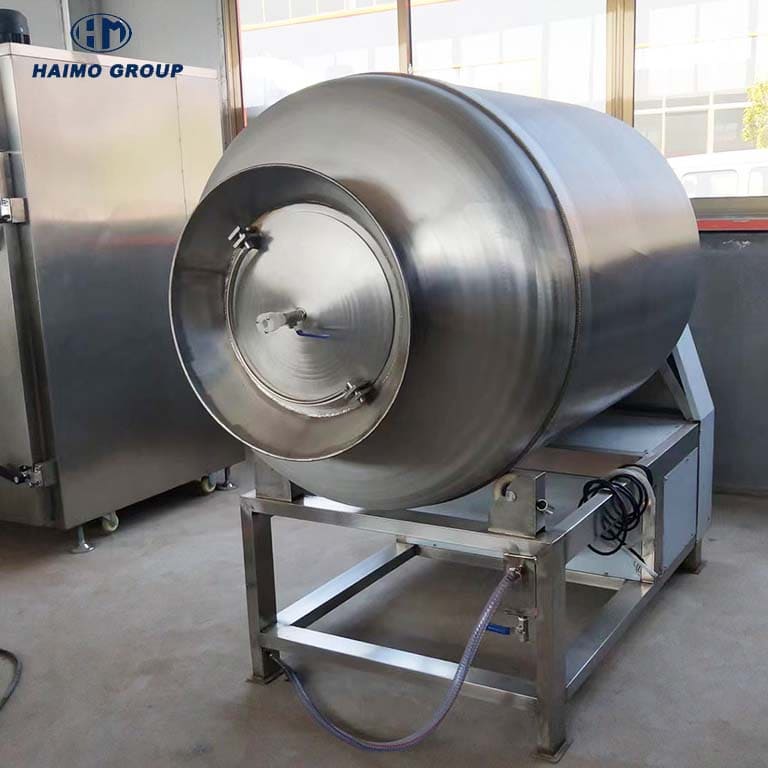

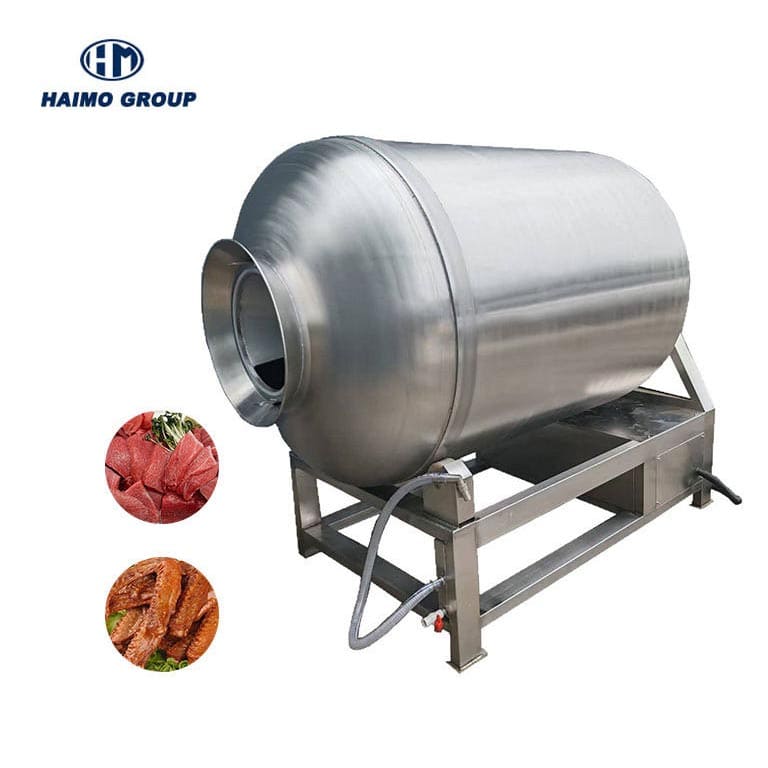

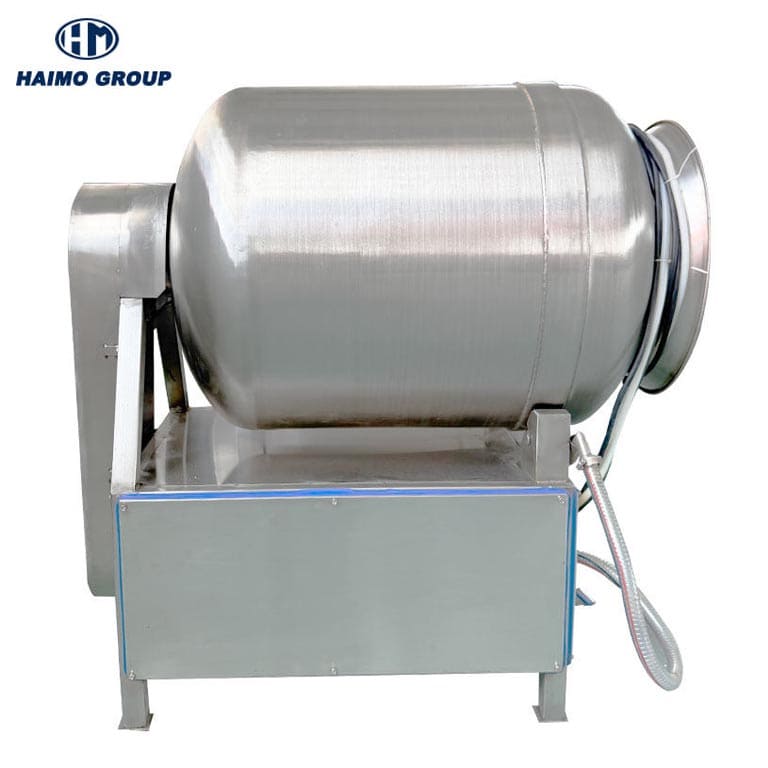

Product Name: Vacuum Meat Tumbler / Massager Machine | Industrial Meat Marinating Equipment (HMGR Series 60L-2000L)
Product Overview:
The HMGR Series Vacuum Meat Tumbler is a high-performance marinating and massaging solution designed for professional meat processing operations. By combining vacuum technology with mechanical tumbling action, this machine dramatically improves brine absorption, protein extraction, and meat binding properties—resulting in superior texture, enhanced yield, and extended shelf life.
Available in capacities from 60L to 2000L, the HMGR series offers a perfect match for small butcher shops, mid-sized food service operations, and large-scale industrial processing plants. Whether you're producing premium ham, sausages, chicken products, or beef and lamb specialties, this vacuum tumbler delivers consistent, high-quality results batch after batch.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Wide Capacity Range (60L-2000L) | Choose the perfect size for your production needs—from 15kg/batch (HMGR-60) up to 800kg/batch (HMGR-2000). |
| Full SUS304 Stainless Steel Construction | Entire machine built from food-grade stainless steel for durability, corrosion resistance, and easy sanitation. Meets HACCP standards. |
| Spinning Cap Drum Ends | Unique spinning cap design at both drum ends maximizes internal impact space, ensuring uniform tumbling action and consistent product quality. |
| Vacuum Processing (-0.06 to -0.08 Mpa) | Vacuum environment accelerates brine absorption, removes air bubbles from meat tissue, and prevents oxidation—improving color, flavor, and shelf life. |
| Variable Frequency Speed Control | Available on larger models (HMGR-400 and above) for precise adjustment of rotational speed to suit different meat types and product requirements. |
| Enhanced Product Quality | Improves binding force between meat and auxiliary materials; enhances elasticity, taste, and cross-section appearance. Results in naturally beautiful color and fresh, tender texture. |
| Increased Yield & Water Retention | Significantly improves water-holding capacity, increasing final product weight and profitability while maintaining quality. |
| Quiet Operation | Engineered for low noise levels, creating a better working environment. |
| Reliable & Energy Efficient | Robust design ensures reliable performance with minimal energy consumption. |
| Simple Operation | User-friendly controls make operation easy with minimal training required. |
How Vacuum Tumbling Works
The HMGR Series Vacuum Tumbler operates through a scientifically proven process:
Loading: Meat and brine/marinade are loaded into the stainless steel drum.
Vacuum Creation: Air is evacuated from the drum to create a vacuum environment (-0.06 to -0.08 Mpa).
Tumbling Action: The drum rotates, causing meat to fall and impact against itself and the drum walls. The spinning cap ends maximize this impact space.
Massaging Effect: Mechanical action opens meat tissue structure, allowing rapid and uniform absorption of brine, phosphates, and seasonings.
Protein Extraction: Tumbling extracts soluble proteins to the meat surface, creating a sticky exudate that improves binding when cooked.
Completion: After the programmed cycle, meat is ready for further processing—stuffing, forming, cooking, or freezing.
The Result:
Uniform brine distribution throughout each piece
Improved binding for whole-muscle and formed products
Enhanced tenderness and juicy texture
Natural, appealing color on cut surfaces
Extended shelf life due to reduced oxidation
Higher yield from improved water retention
Applications
The HMGR Series Vacuum Tumbler is essential equipment for:
| Product Category | Applications |
|---|---|
| Premium Ham | Whole-muscle and formed hams with superior binding and sliceability |
| Meat Sausages | Improved emulsion stability and texture |
| Chicken Products | Marinated breasts, thighs, and formed poultry items |
| Beef Products | Roasts, corned beef, pastrami, and beef jerky |
| Lamb & Mutton | Marinated cuts and value-added lamb products |
| Bacon & Cured Meats | Rapid, uniform cure distribution |
| Whole-Muscle Meats | Enhanced tenderness and flavor penetration |
Ideal for:
Meat processing plants
Sausage and ham factories
Further processing facilities
Central kitchens
Catering operations
Butcher shops
Technical Specifications
| Model | Volume (L) | Capacity (kg/batch) | Power (kW) | Power Supply | Speed (r/min) | Vacuum (Mpa) | Weight (kg) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|---|---|
| HMGR-60 | ≈60 | 15-20 | 0.57 | 220V/50Hz | 3-16 | -0.06~-0.08 | ≈90 | 920×410×840 |
| HMGR-200 | ≈200 | 60-70 | 1.5 | 220V/50Hz | 3-15 | -0.06~-0.08 | ≈200 | 1310×620×1100 |
| HMGR-400 | ≈400 | 100 | 1.85 | 380V/50Hz | Fixed/VFD* | -0.06~-0.08 | ≈300 | 1280×820×1380 |
| HMGR-600 | ≈600 | 200 | 2.25 | 380V/50Hz | Fixed/VFD* | -0.06~-0.08 | ≈330 | 1330×1020×1575 |
| HMGR-800 | ≈800 | 300 | 2.25 | 380V/50Hz | Fixed/VFD* | -0.06~-0.08 | ≈430 | 1490×1020×1575 |
| HMGR-1000 | ≈980 | 500 | 3.0 | 380V/50Hz | VFD | -0.06~-0.08 | ≈480 | 1760×1020×1573 |
| HMGR-1500 | ≈1500 | 600 | 6.85 | 380V/50Hz | VFD | -0.06~-0.08 | ≈630 | 2000×1120×1680 |
| HMGR-2000 | ≈2000 | 800 | 7.85 | 380V/50Hz | VFD | -0.06~-0.08 | ≈960 | 2390×1230×1840 |
*VFD = Variable Frequency Drive (speed adjustable)
Why Choose HMGR Series Vacuum Tumbler?
| Advantage | Detail |
|---|---|
| Superior Marination | Vacuum environment accelerates brine absorption up to 30% faster than atmospheric tumbling. |
| Enhanced Product Quality | Improves binding, elasticity, taste, and cross-section appearance—resulting in premium products that command higher prices. |
| Increased Yield | Enhanced water retention significantly boosts final product weight, directly improving profitability. |
| Extended Shelf Life | Vacuum processing reduces oxidation and bacterial growth, keeping products fresher longer. |
| Versatile Applications | One machine handles ham, sausage, poultry, beef, lamb, and whole-muscle products. |
| Hygienic Design | Full stainless steel construction with smooth surfaces and spinning cap ends for easy cleaning. |
| Scalable Solutions | Eight models from 60L to 2000L—grow your business without changing equipment suppliers. |
| Energy Efficient | Optimized drive systems minimize power consumption while maximizing tumbling effect. |
Integration with Meat Processing Line
The HMGR Vacuum Tumbler integrates seamlessly with other equipment:
| Upstream Equipment | Downstream Equipment |
|---|---|
| Saline injectors (ZN series) | Stuffers & fillers |
| Meat portion cutters | Forming machines |
| Grinders & mixers | Smokehouses & ovens |
| Freezing tunnels | |
| Packaging lines |
Frequently Asked Questions
Q: What is the difference between fixed speed and variable frequency models?
A: Smaller models (HMGR-60/200) offer fixed speed suitable for basic applications. Larger models (HMGR-400 and above) offer variable frequency speed control, allowing precise adjustment for different meat types and product requirements.
Q: How long should I tumble different meats?
A: Tumbling time varies by product:
Whole muscle hams: 8-12 hours (intermittent cycle)
Formed products: 2-4 hours
Poultry: 30-60 minutes
Small batch marination: 20-40 minutes
Our team can provide specific recommendations for your products.
Q: Can I tumble frozen meat?
A: Meat should be tempered (0-4°C) before tumbling. Partially frozen meat will not absorb brine effectively and may damage the machine.
Q: How do I clean the tumbler?
A: The spinning cap ends and smooth stainless steel interior make cleaning straightforward. Rinse with warm water, use approved food-grade cleaners, and sanitize according to your HACCP plan.
Q: What vacuum level should I use?
A: The recommended vacuum range is -0.06 to -0.08 Mpa. Higher vacuum may over-extract proteins; lower vacuum reduces marination efficiency.
Q: Do you provide installation and training?
A: Yes, we offer installation support and operator training to ensure your team can maximize machine performance.
Contact Us
Ready to enhance your meat processing with HMGR Series Vacuum Tumbler? Contact our team today for technical specifications, pricing, or to schedule a demonstration.
