Product Name: Hydraulic Sausage Filling Machine with Automatic Clipping | 500-800 kg/h Sausage Stuffer
Product Overview:
Our Hydraulic Sausage Filling Machine combines high-speed hydraulic filling with automatic clipping/twisting functionality—delivering superior performance for meat sausage production. Unlike pneumatic systems, this hydraulic-powered machine provides faster, more powerful discharge with consistent pressure, enabling smooth filling of both coarse meat chunks and fine minced meat.
With a production capacity of 500-800 kg per hour and adjustable portion sizes from 3g to 1000g, this versatile machine is ideal for sausage manufacturers seeking efficiency, flexibility, and easy operation. The large 60L hopper minimizes reloading downtime, while the stainless steel construction ensures easy cleaning and HACCP compliance.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Hydraulic Power System | Faster and more powerful than pneumatic systems—ensures consistent filling pressure for uniform sausage structure. |
| High Capacity (500-800 kg/h) | Processes large volumes quickly, ideal for medium to large-scale sausage production. |
| Flexible Filling Capability | Handles both coarse meat chunks and fine minced meat with equal ease—versatile for different sausage types. |
| Automatic Twisting/Clipping | Integrated automatic enema twisting produces individually portioned sausages with consistent weight and length. |
| Adjustable Portion Size (3-1000g) | Wide portion range allows production of everything from small cocktail sausages to large specialty links. |
| Large 60L Hopper | Reduces frequency of reloading, improving continuous production efficiency. |
| Multiple Casing Tube Sizes | Standard tubes: 12mm, 18mm, 30mm (custom sizes available upon request). |
| Easy Feeding Operation | Smooth, effortless feeding mechanism reduces operator fatigue. |
| Quick & Easy Cleaning | Stainless steel construction with smooth surfaces allows rapid sanitation between production runs. |
| Compact Footprint | 1050×650×1420mm size fits efficiently in commercial production spaces. |
| Energy Efficient | Only 75W power consumption—low operating costs. |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Automatic Enema Twisting Machine / Hydraulic Sausage Filler |
| Model | (Insert model number if available) |
| Voltage | 220V / 50Hz / 60Hz |
| Power | 75W |
| Hopper Capacity | 60 Liters |
| Enema Range (Portion Size) | 3g – 1000g (Adjustable) |
| Casing Tube Sizes | 12mm, 18mm, 30mm (Custom sizes available) |
| Production Capacity | 500 – 800 kg/hour |
| Machine Weight | 400 kg |
| Machine Dimensions | 1050 × 650 × 1420 mm |
| Construction Material | Stainless Steel |
| Power System | Hydraulic (vs. Pneumatic) |
How It Works
The Hydraulic Sausage Filling Machine operates through a simple, efficient process:
Loading: Meat emulsion (coarse chunks or fine mince) is loaded into the 60L hopper.
Hydraulic Filling: The hydraulic system generates powerful, consistent pressure to push meat through the casing tube without pulsation.
Casing Application: Sausage casing is placed on the selected tube size (12mm, 18mm, 30mm).
Filling & Twisting: As meat fills the casing, the automatic twisting mechanism creates individual sausages with adjustable portion weights (3-1000g).
Continuous Operation: The large hopper and fast discharge enable continuous production with minimal interruption.
Discharge: Finished sausages are ready for cooking, smoking, or packaging.
The Result:
Uniform intestinal structure – consistent sausage diameter and shape
Fast discharge speed – higher productivity
Flexible production – easy switching between chunk and minced fillings
Reduced labor – automatic twisting eliminates manual portioning
Applications
This hydraulic sausage filler is ideal for:
| Product Type | Applications |
|---|---|
| Fresh Sausages | Breakfast links, bratwurst, Italian sausage |
| Cooked Sausages | Frankfurters, wieners, bologna |
| Dry/Cured Sausages | Pepperoni, salami, chorizo |
| Specialty Sausages | Coarse-ground sausages with visible meat chunks |
| Restructured Meat Products | Value-added meat items |
Suitable for:
Sausage manufacturing plants
Butcher shops & meat markets
Food service operations
Specialty meat producers
Catering businesses
Hydraulic vs. Pneumatic: Why Hydraulic Wins
| Feature | Hydraulic System (Our Machine) | Pneumatic System |
|---|---|---|
| Filling Speed | Faster – continuous high pressure | Slower – pressure drops during cycles |
| Power | Stronger – handles meat chunks easily | Weaker – better for fine emulsions only |
| Pressure Consistency | Uniform throughout fill | Variable with compressor cycles |
| Noise Level | Quieter operation | Louder due to compressor |
| Energy Efficiency | Lower operating cost | Higher energy consumption |
| Maintenance | Fewer moving parts, simpler | More components, complex maintenance |
Why Choose Our Hydraulic Sausage Filler?
| Advantage | Detail |
|---|---|
| Superior Speed & Power | Hydraulic system outperforms pneumatic for faster production and chunk handling. |
| Versatile Filling | One machine handles both coarse and fine products—no need for multiple machines. |
| Consistent Quality | Uniform intestinal structure ensures professional appearance and even cooking. |
| High Efficiency | 500-800 kg/h capacity with automatic twisting reduces labor costs. |
| Flexible Portioning | Adjust 3g to 1000g portions for diverse product lines. |
| Easy to Clean | Stainless steel with smooth surfaces—quick sanitation between batches. |
| Reliable Performance | Simple, robust design with low maintenance requirements. |
| Continuous Production | Large 60L hopper minimizes reloading downtime. |

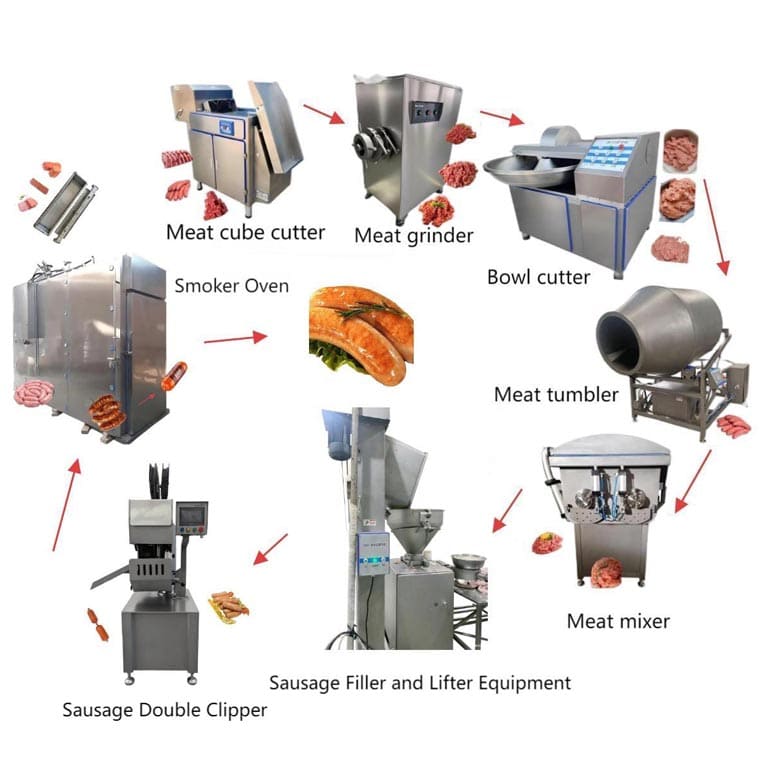

Integration with Sausage Production Line
This hydraulic filler integrates seamlessly with other equipment:
| Upstream Equipment | Downstream Equipment |
|---|---|
| Meat grinders | Smokehouses & ovens |
| Bowl cutters | Cook tanks |
| Meat mixers | Cooling tunnels |
| Packaging lines |
Frequently Asked Questions
Q: What types of casings can be used?
A: The machine works with both natural and artificial casings (collagen, cellulose, plastic). Choose the appropriate tube size for your casing diameter.
Q: Can it fill meat with chunks up to what size?
A: The hydraulic system can handle moderate-sized meat chunks typical for coarse-ground sausages. For very large chunks, consult our technical team.
Q: How do I change between different portion sizes?
A: Portion size is easily adjustable via machine controls—from 3g mini sausages up to 1000g large links.
Q: How long does cleaning take?
A: With smooth stainless steel surfaces and accessible design, cleaning typically takes 10-15 minutes between production runs.
Q: What maintenance is required?
A: Regular cleaning, occasional hydraulic fluid check, and routine inspection of moving parts. Detailed maintenance schedule provided with machine.
Q: Can I get custom tube sizes?
A: Yes, we offer customized casing tubes to match your specific product requirements.
Q: How does it compare to pneumatic fillers?
A: Hydraulic is faster, more powerful, and better for chunk-filled sausages. Pneumatic systems are generally slower and better suited only for fine emulsions.
Contact Us
Ready to boost your sausage production with hydraulic power? Contact our team today for technical specifications, pricing, or to schedule a demonstration.
